Flow Editor - Components

Last modified by Erik Bakker on 2023/01/24 15:11

Not all flows in the flow editor are completely pre-built yet and do require changes made by you.
In this microlearning, we will focus on getting to know the various types of components that are at your disposal while creating/editing a flow and illustrate what those types are based on some examples.

Should you have any questions, please contact academy@emagiz.com.

1. Prerequisites

  • Basic knowledge of the eMagiz platform

2. Key concepts

This microlearning focuses on the components in the flow editor.

3. Flow Editor Components

Not all flows in the flow editor are completely pre-built yet and do require changes made by you.
Therefore we would like to walk you through the various types of components that you can use to edit your flow:

  • Inbound (Input)
  • Outbound (Output)
  • Transformation (Change)
  • Splitter (Change)
  • Filter (Decision)
  • Router (Decision)
  • Support (Help)

To connect each of these components you use channels that connect one component to another component.

3.1 Inbound

All inbound components represent the input of your flow (i.e. the starting point). Inbound components can be identified through the green color of the components


Via these components, the flow either receives or retrieves data from an external source. The inbound components most frequently used are:

  • JMS Message-Driven Channel Adapter
  • HTTP Inbound Gateway
  • Web service Inbound Gateway
  • File inbound channel adapter
  • Kafka message-driven channel adapter

We will not discuss each of them in detail here but all of them receive or retrieve data from an external source.
The JMS Message-Driven Channel Adapter for example receives messages placed on a certain queue. The HTTP Inbound Gateway receives messages every time someone calls your endpoint.
The file inbound channel adapter retrieves messages from a specific location.

3.2 Outbound

All outbound components represent the output of the flow (i.e. the endpoint). Outbound components can be identified through the white color with a green border.


Via these components, the flow either sends or retrieves data to/from an external source. The outbound components most frequently used are:

  • JMS outbound channel adapter
  • HTTP Outbound Gateway
  • Web service Outbound Gateway
  • File outbound channel adapter
  • Kafka outbound channel adapter

As you can see, the list is pretty similar, and when you make the correct design decisions most of these are already placed on the canvas and you only need to fill in the details at most.
The JMS outbound channel adapter for example sends messages to a certain queue.
The HTTP outbound gateway sends or retrieves (based on the operation) messages from an external source by calling an endpoint.
The Kafka outbound channel adapter sends data to a topic.

3.3 Transformation

All standard transformations as created as part of the message mapping in Design are automatically transferred and correctly linked to the flow in Create. So that is easy.
In all other cases, you will have to add a transformation component to the flow. These components are identified as blue rectangles in eMagiz


The two most often use cases of a transformation component are:

  • XSLT Transformer (Using the message mapping in Design)

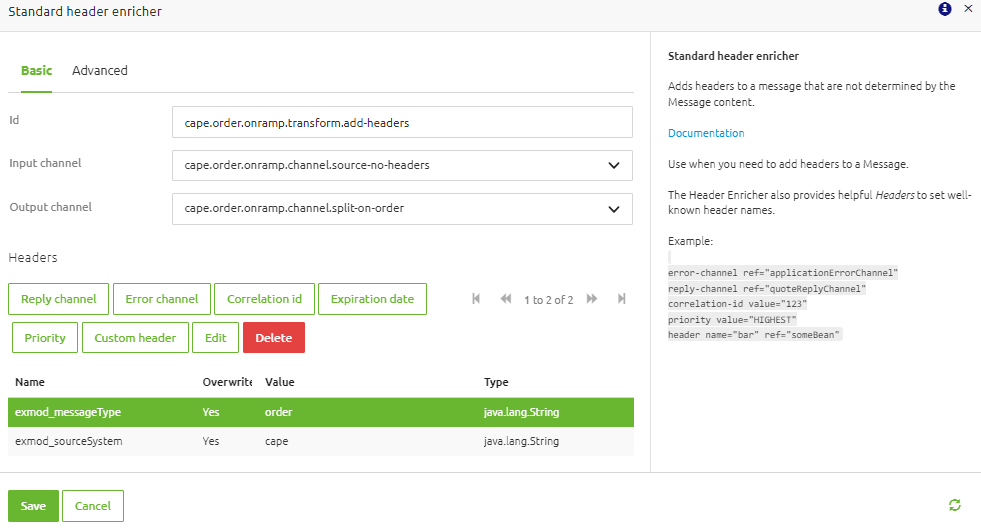

  • Standard Header enricher

We will talk more about the former later in this course.
The latter gives you the option to add pieces of metadata to the data that you are processing (i.e. where does it come from, what is it about, where should it go to).

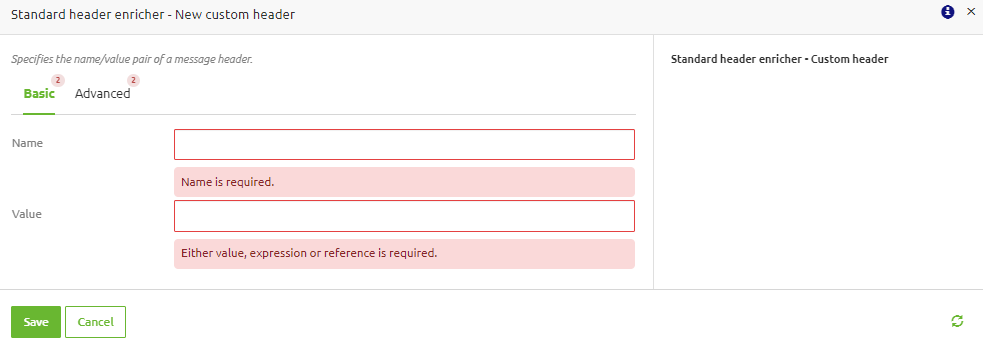

To do so you can add a Custom header with name and value to the standard enricher component that will be stored on the message level.



Some other transformation components that are used are:

  • Flat file to XML transformer
  • XPath header enricher
  • Standard Transformer

3.4 Splitter

In eMagiz, you can split messages based on the input message.
If an input message contains a list you can make separate messages based on each entry in the list with the help of a splitter. These components are identified as blue trapeziums in eMagiz.


We will discuss the splitter components in more detail in a later microlearning.

3.5 Filter

In eMagiz, you can filter messages based on certain criteria a message should adhere to. If an input message does not fit the criteria it will be filtered out.
The failure of matching the criteria can lead to silently dropping messages or could lead to an error (the decision is yours). These components are identified as yellow pentagons in eMagiz.


There are three filter components available of which the XML validating filter is used most often:

  • XML validating filter
  • Standard filter
  • XPath filter

The best practice is to validate your message before and after any change done by a component that is capable of altering the message (i.e. transformation and splitter).
This can be done with the help of an XML validating filter. This filter validates your input message against your message definition. If the message is valid it can pass. If not it will be refused.

In a standard filter or XPath filter, you could filter on the information in the body of the message or metadata information stored in a header related to the message. More on those in a later course.

3.6 Router

In eMagiz, you can route messages based on criteria. The content to verify if the criteria are met can be either stored in headers or in the body itself.
These components are identified as yellow diamonds in eMagiz.


There are several router components in eMagiz. The most used ones are:

  • Header value router
  • Recipient list router

As most of the use cases for incorporating a router component on flow level without eMagiz generating it for you lie within messaging we won't go into detail in the exact mechanics of each of these router options.

3.7 Support

In eMagiz, support objects can be linked to a functional component to aid the working of that component. These components are identifiable through the grey color of the components


We will discuss the support components in more detail in a later microlearning.

3.8 Channel

To connect all these components (except for the support objects) we need channels. A channel makes sure that the output of component A is sent to component B for further processing.


Each channel should be given a descriptive name so you and others you work with know what the channel is used for.

3.9 Annotation

eMagiz also offers you the option to add an annotation and link it to one or more components.
This way you can make it explicit for yourself and others what is exactly happening in those components and why you have opted for a certain option.


3.10 The Combination

Combining this all together results in a flow with at least an input and output component helped by several support objects. An example of what a working flow looks like is:


4. Key takeaways

  • By making the correct Design decisions eMagiz will generate most of your flow for you based on defined best practices.
  • If no best practice has yet emerged only the known components are generated
  • A flow needs to have at least an input and output component paired with the default support objects
  • Every component has a specific function and there are a lot of them

5. Suggested Additional Readings

If you are interested in this topic and want more information on it please read the help text provided by eMagiz or browse through the reference guide to see which components eMagiz offers.
